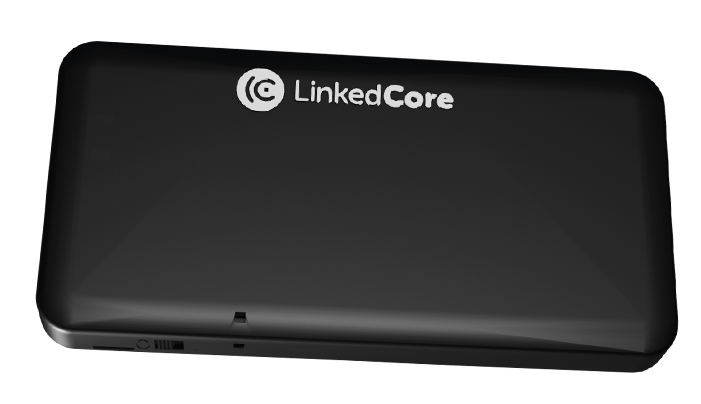

LG2x Series

The LG2x Series goods trackers are targeted for modern tracking applications featuring: LTE cellular technologies, multi-constellation GNSS, Bluetooth Low Energy, Wi-Fi based positioning, and temperature & humidity sensors, among other highlights.

Without losing the focus on cost, the family (composed by LG20) is ready for applications where a rechargeable device with high internal battery autonomy is required, such as cold-chain monitoring, general goods & assets tracking, people tracking, etc.

General Specifications
» Internal battery: 2,500 mAh Li-ion, rechargeable
» Power Consumption:
» ≤ 80uA Standby Mode
» Status leds: 2
» Internal antennas
» Nano-SIM
» ON/OFF switch.

Cellular variants
» LG20-[region]: 4G/2G [LA, EM, NA, CN] » LG20M: CatM1/NBIoT/2G [global]

GNSS
» GPS/GLONASS/Beidou

RF
» BLE 5.0
» Wi-Fi 2.4GHz scan (positioning only)

Sensors
» 3-Axis Accelerometer (±2g/±4g/±8g/±16g)
» Temperature (±0.5°C, -20°C ~ +70°C)
» Humidity (±2% RH @ +10°C ~ +70°C)
» Light level (0-1000)

GPIOs and buses
» USB port (configuration & charging)

Operational
» Operating Temperature: -20°C ~ +70°C

Mechanical
» IP54
» Material: ABS
» Dimensions: 121mm x 61mm x 8mm
» Weight: ~90g

Applications & Industries
» Cold-chain traceability (food & beverage, pharma industries)
» Personal tracker (industries safety-applications, children, and elders tracking)
» Luggage, bags, and other valuable small assets tracking

Software
» FOTA
» Asset static/movement detection
» Multiple configurable events and alarms
» Offline buffer:
» LG20: 700KB (~7K packets)
» LG20M: 1.2MB (~12K packets)
